Vákuumszivattyúk

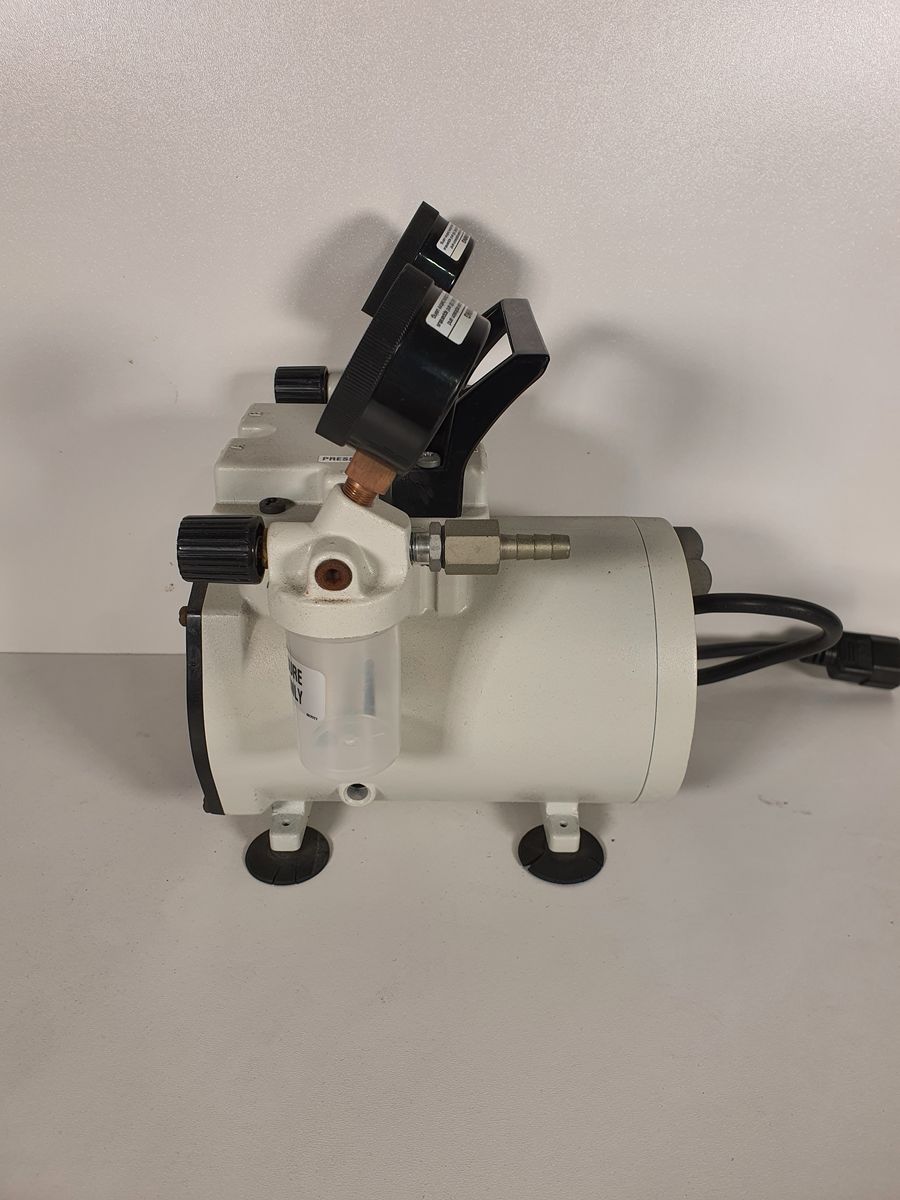

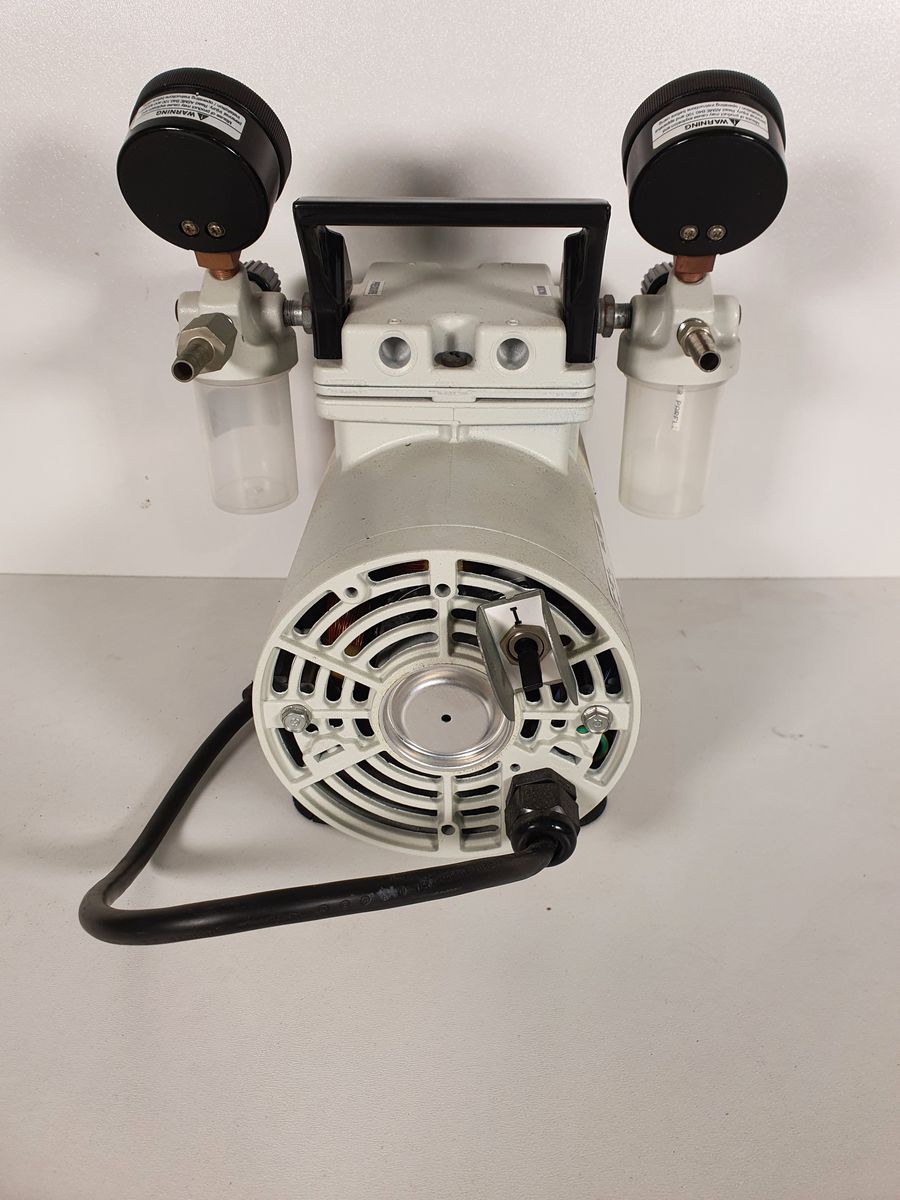

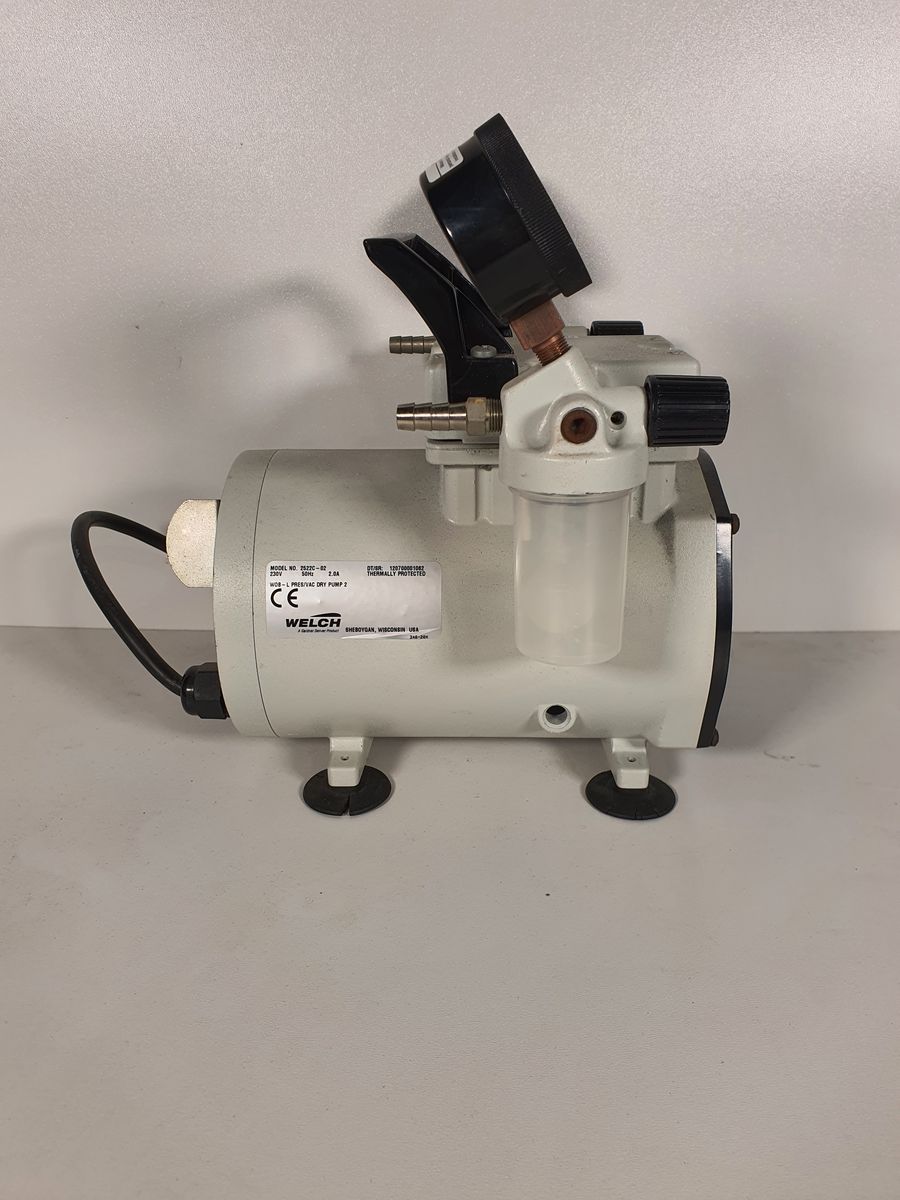

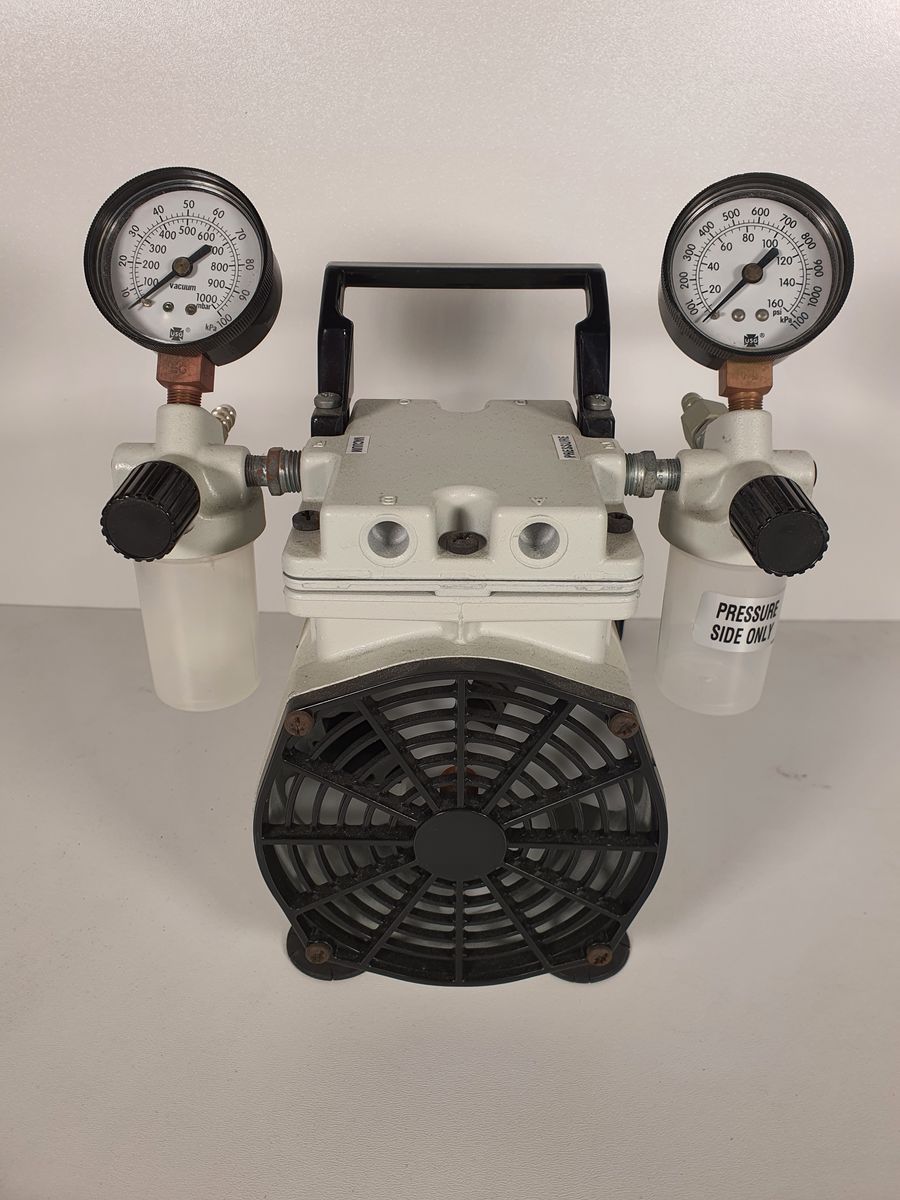

WELCH 2522C

SKU: 21001

Raktáron

24/7 SZÁLLÍTÁS LEHETSÉGES

Felújított

Áfát nem tartalmazza: €350,00 (1 elérhető)

Áfával együtt: €423,50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított 3 hónapok

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Specifications

Specification	Value
Head	ConfigurationSingle Head
Wetted	Parts304 Stainless Steel, Aluminum, PTFE
Free-Air	Capacity (CFM)0.67
Free-Air	Capacity (LPM)19
Free-Air	Capacity (LPH)1140
Max	Flow Rate (CFM)0.67
Max	Flow Rate (Liters/min)19
Max	Pressure (PSI)100
Max	Pressure (bar)6.9
Max	Vacuum (in Hg)26
Max	Vacuum (mbar)132.9
Max	Vacuum (mm Hg)99.6
Max	Vacuum (torr)99.6
Noise	Level (dB)62
Port	Size1/4" hose barb
Max	Temperature (° F)104
Max	Temperature (° C)40
Duty	CycleContinuous
Power	(VAC)230
Power	(amps)1.3
Power	(Hz)50
Motor	TypeSplit phase
Height	(in)10
Length	(in)8
Height	(cm)25.4
Length	(cm)20.32
Height	(mm)254
Length	(mm)203.2
Motor	hp1/8
DescriptionStandard	Duty Dry Vacuum Piston Pumps, 19 L/min, 230 VAC
