Pneumatikus Aktuátorok
Hoke 0722A5 / 7122G4Y
SKU: 4001
Raktáron
24/7 SZÁLLÍTÁS LEHETSÉGES
Garancia Információk
Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

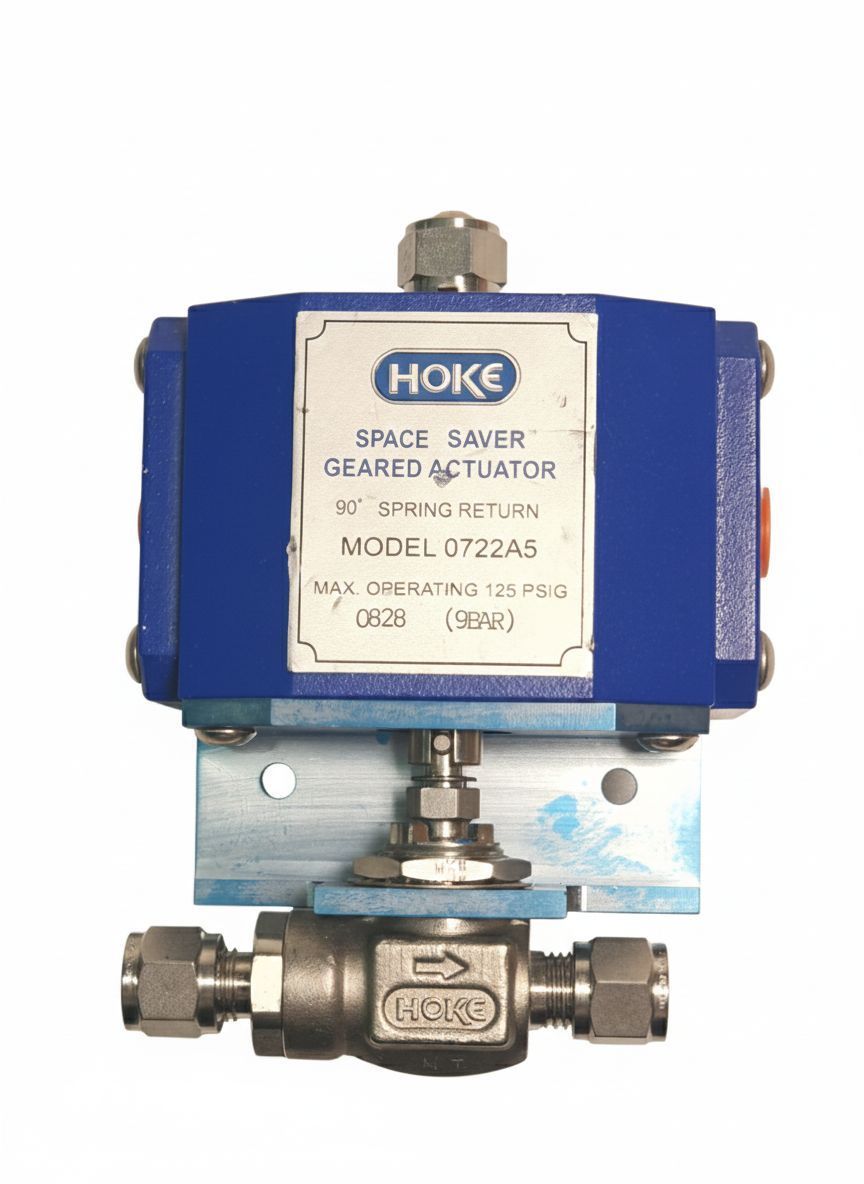

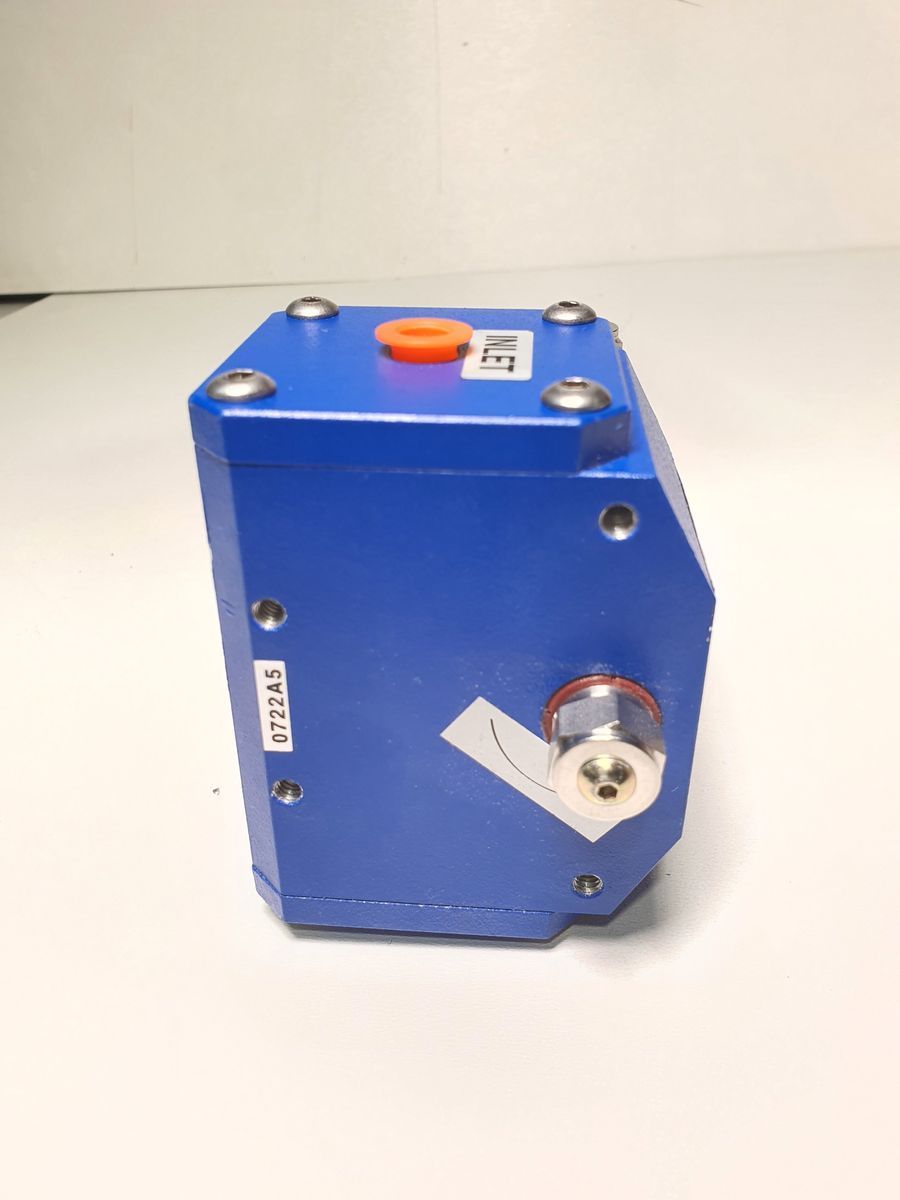

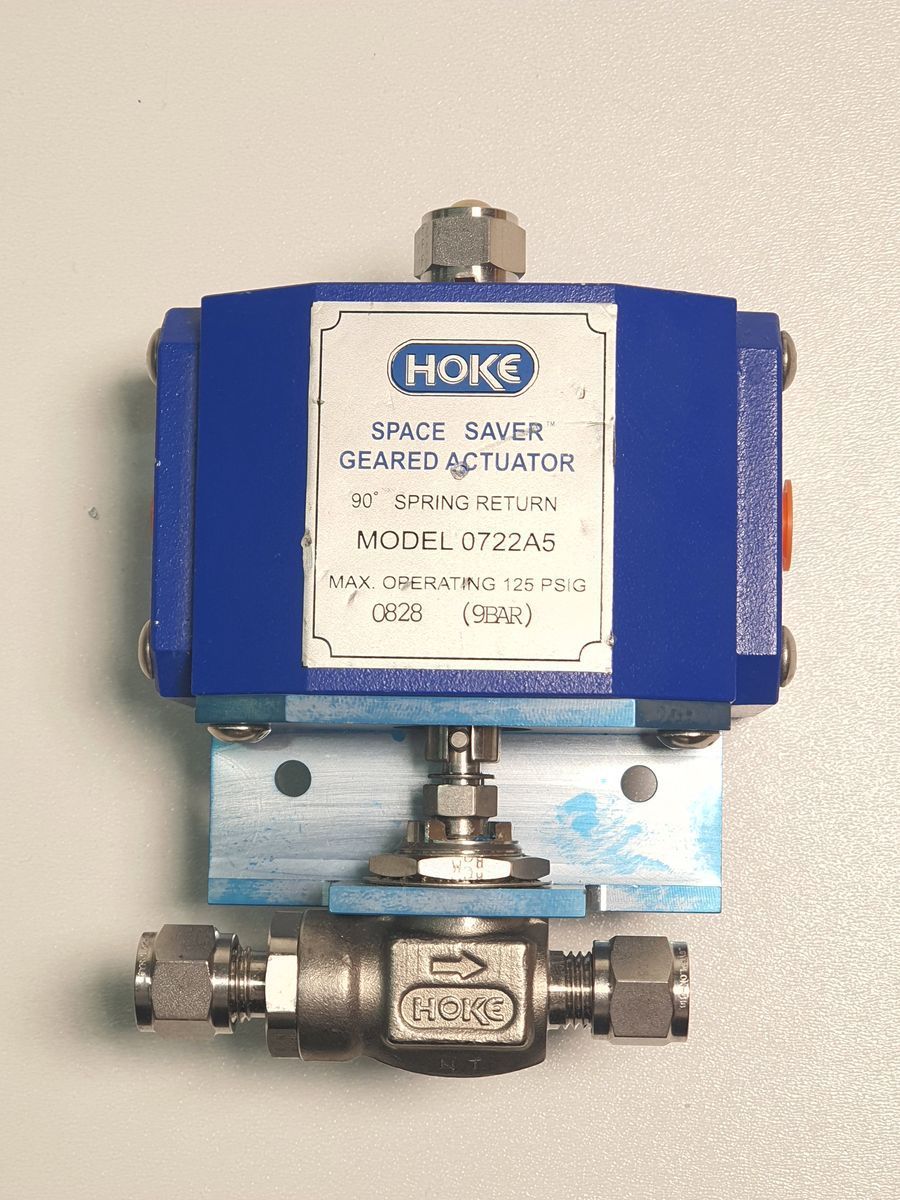

Hoke 0722A5
| Specification | Value |
|---|---|
| Housing Material | Polyurethane coated aluminum |
| Maximum Operating Pressure | 125 psig (9 bar) |
| Air Supply Connection* | 1/8 Female NPT |
| Operating Temperature Range A4 Actuators | 0° to 250° F (-18° to 121° C) |
| Operating Temperature Range A5 Actuators | 0° to 400° F (-18° to 204° C) |
| Cycle time** | 1 second (dependent on air supply) |
| Cycle Life | 250,000 cycles minimum |
| Weight | 1.7 lbs. (0.75 kg) |

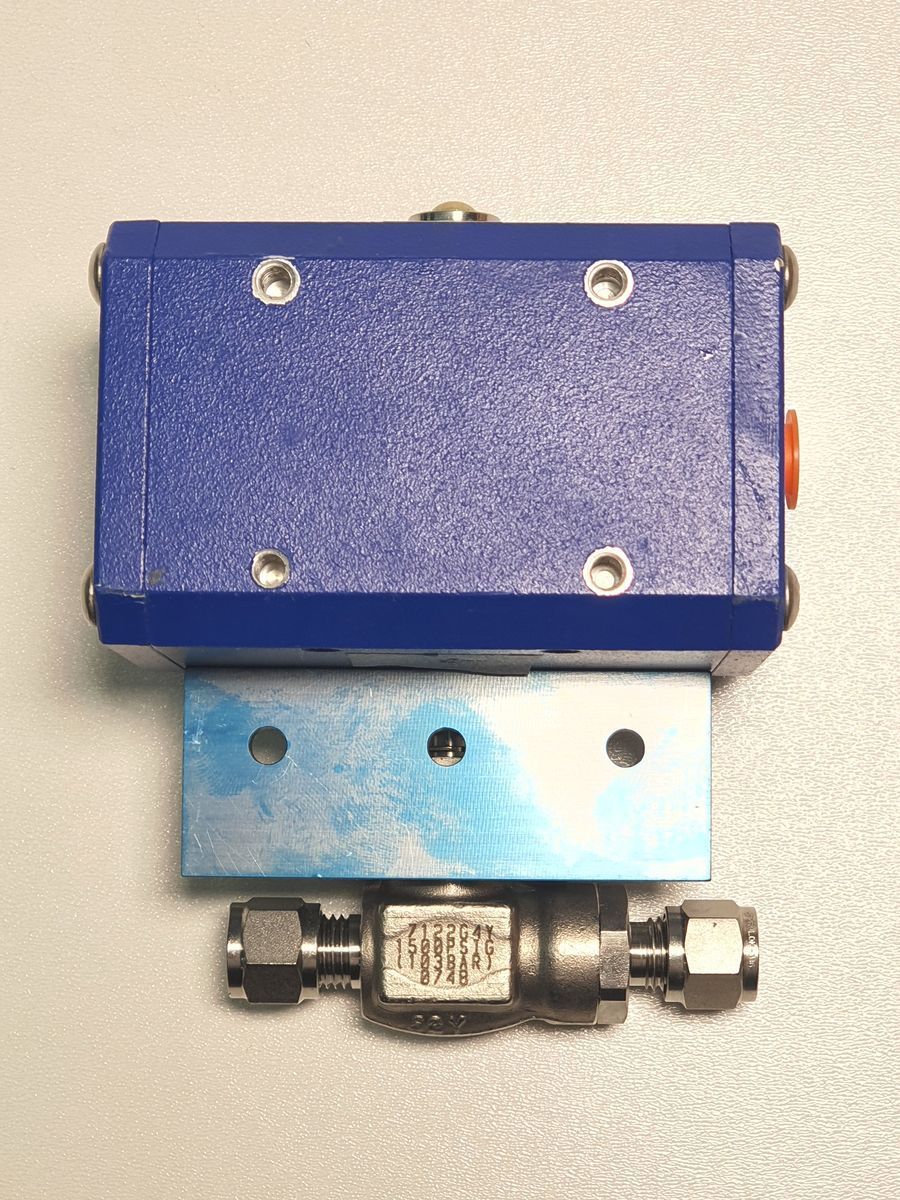

7122G4Y 2-Way valve
| Specification | Value |
|---|---|
| Connections - Inlet | 1/4" Gyrolok |
| Connections - Outlet | 1/4" Gyrolok |
| Body Material | 316 Stainless Steel |
| Operating Pressure Range | 1500 psig at 70° F (103 bar at 21° C) |
| Operating Temperature Range | -40 to +350 ºF -40 to +176 ºC |
| Orifice | 0.187 in 4.70 mm |
| C | 1 19/32 in 41 mm |
| E | 3 3/32 in 78 mm |
| H | 1/2 in 13 mm |
| H1 | 7/16 in 11 mm |
| Panel Hole | 49/64 in 19 mm |
| Panel Thickness | 1/4 in 6.0 mm |
| Features & Benefits | Quarter turn handle provides a visual indication of on/off valve position, improving safety. Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability. Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions. Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value. A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fi ... |
×
![]()
