Áramlásmérő

Brooks Instrument 1350/D2F1D1A6H020 (50-200 ln/h)

SKU: 3013

Raktáron

24/7 SZÁLLÍTÁS LEHETSÉGES

Válassza ki a feltételt

Használt
Munkakörnyezetből származik

Áfát nem tartalmazza: €55,00 (1 elérhető)

Áfával együtt: €66,55

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Garancia Információk

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított 3 hónapok

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Leírás

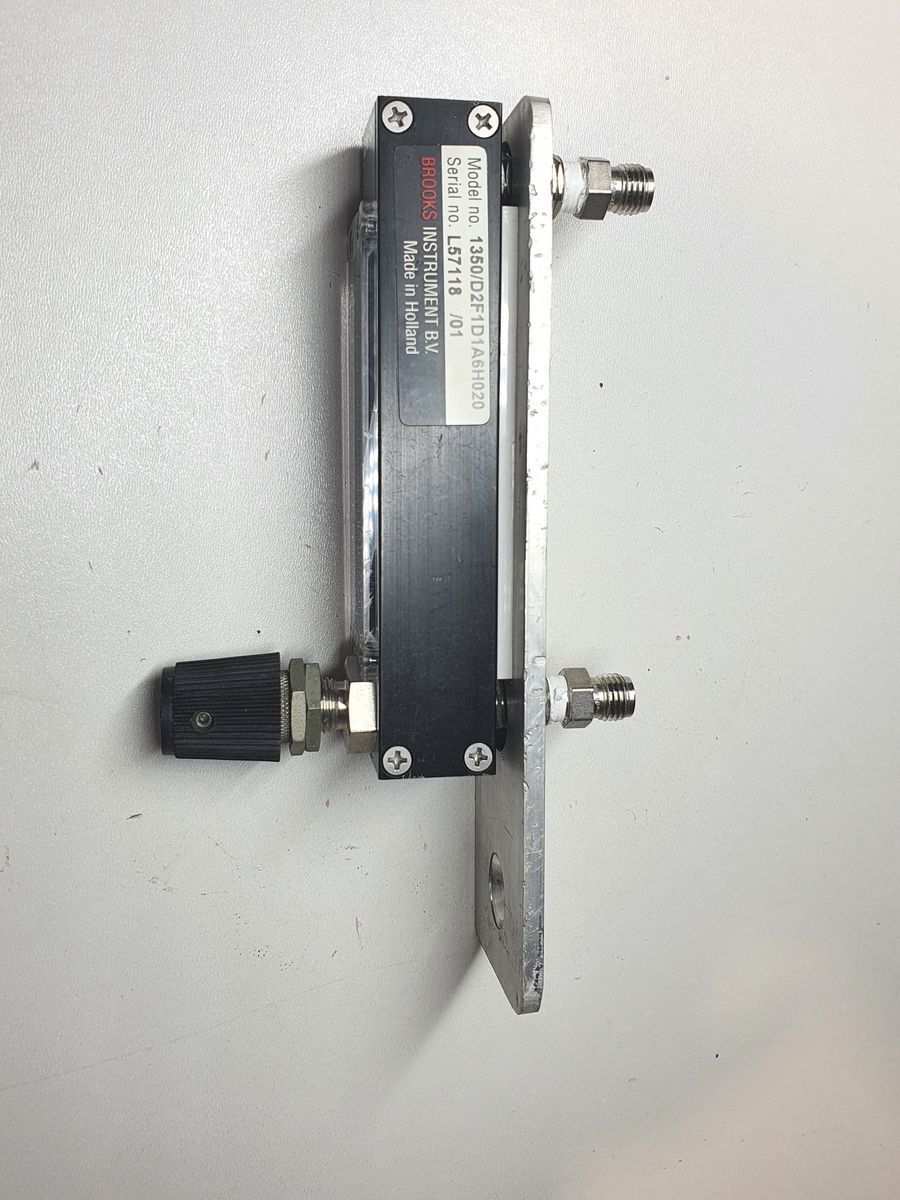

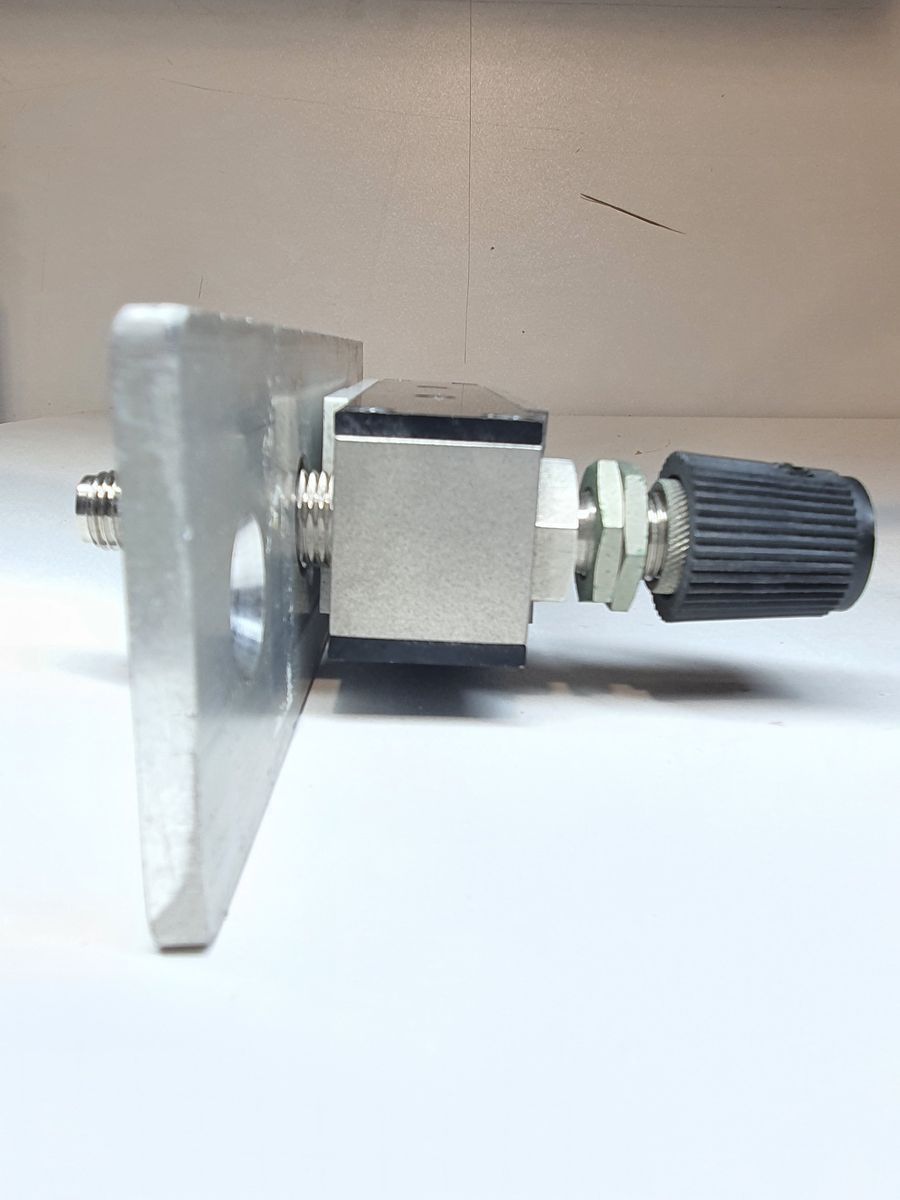

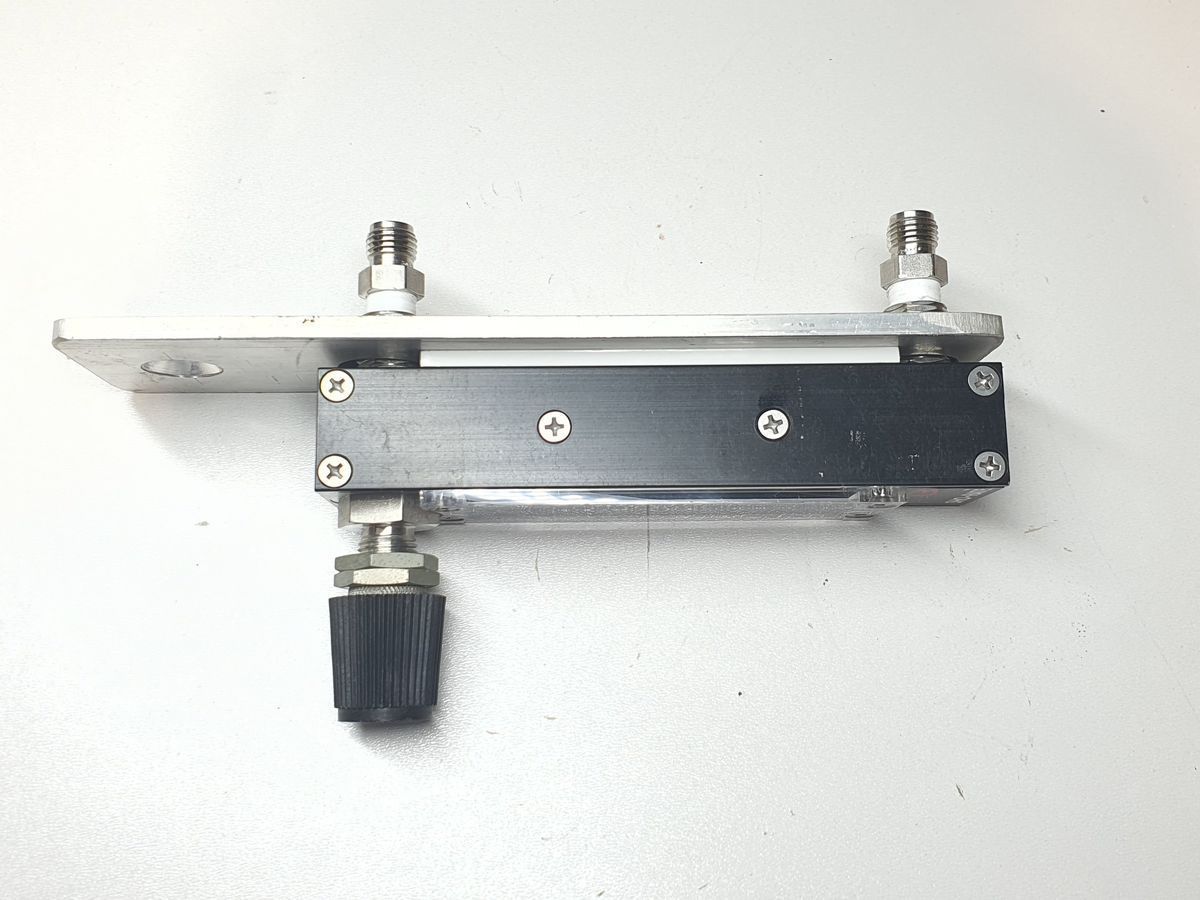

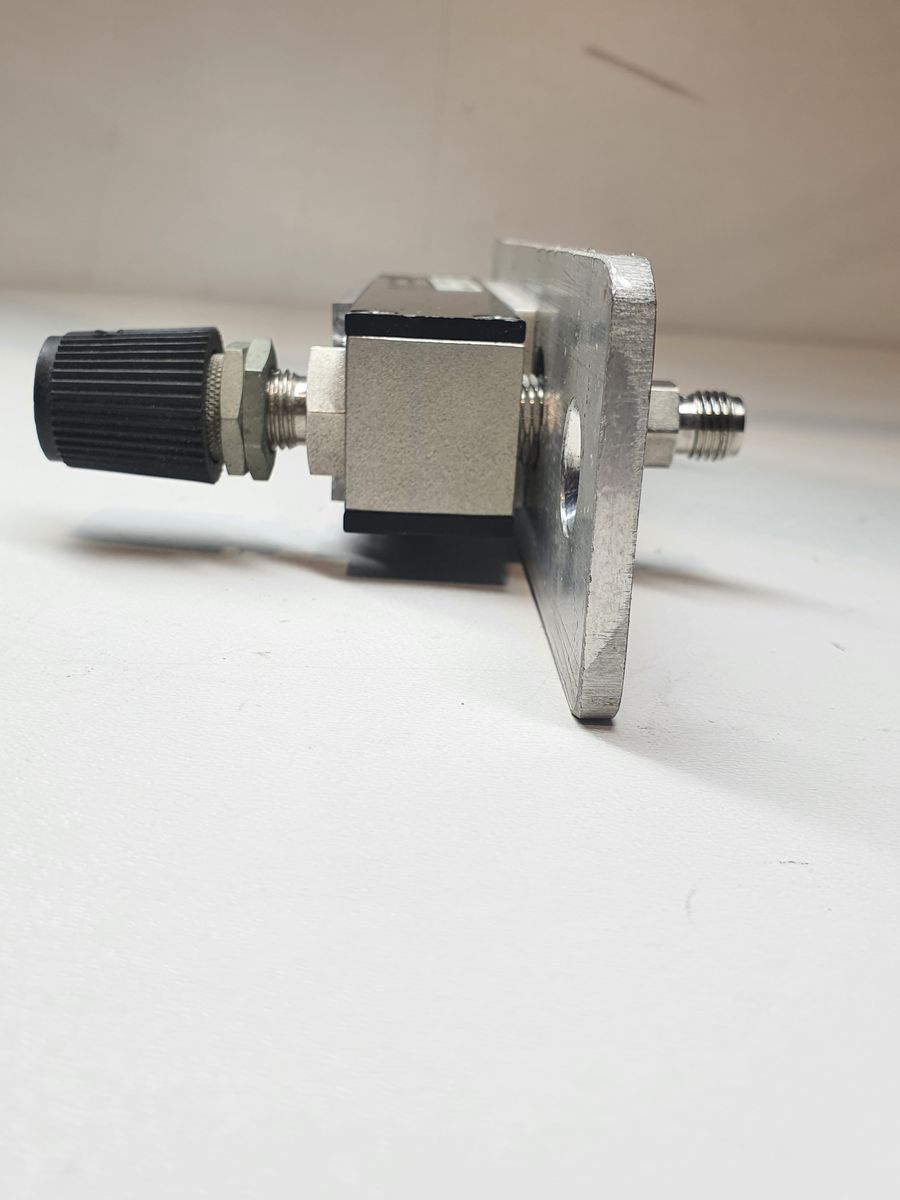

Brooks Sho-Rate™ 1350 Flow meter

Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands

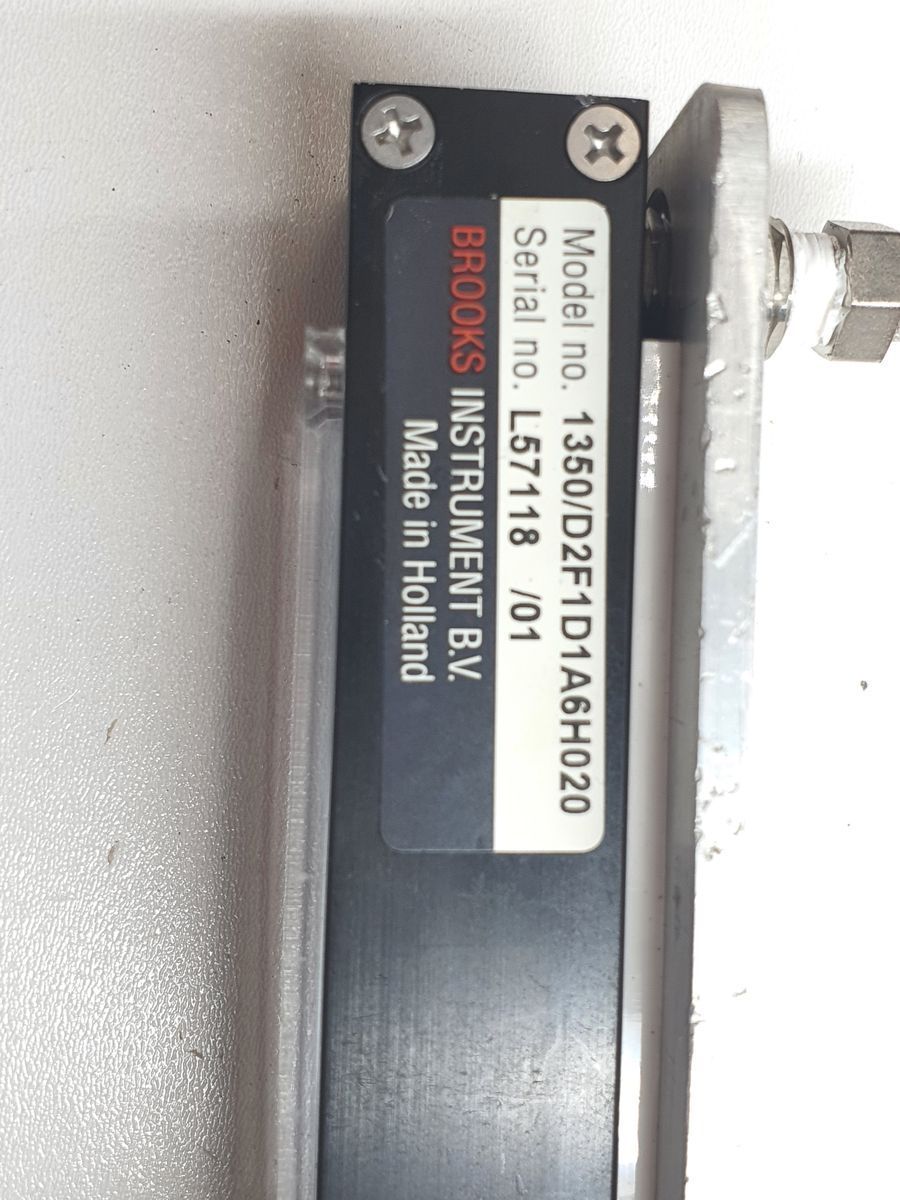

Model: 1350/D2F1D1A6H020
Product Type: Variable Area Flowmeter (Rotameter)

Parameter	Specification
Measurement principle	Float position (variable area)
Indication	Direct visual indication
Measured medium	Nitrogen (N₂)
Flow range	50–200 ln/h N₂ (per F1/D1 tube configuration)
Accuracy	Typically ±5% of full scale
Repeatability	Excellent repeatability (typically ±0.5% FS)
Calibration temperature	20 °C
Operating temperature range	1 °C to 121 °C
Inlet pressure (Pe)	0.4 bar
Metering tube material	Borosilicate glass
Float material	Stainless steel
Body / frame material	Aluminum
Seals	Viton®
Installation orientation	Vertical

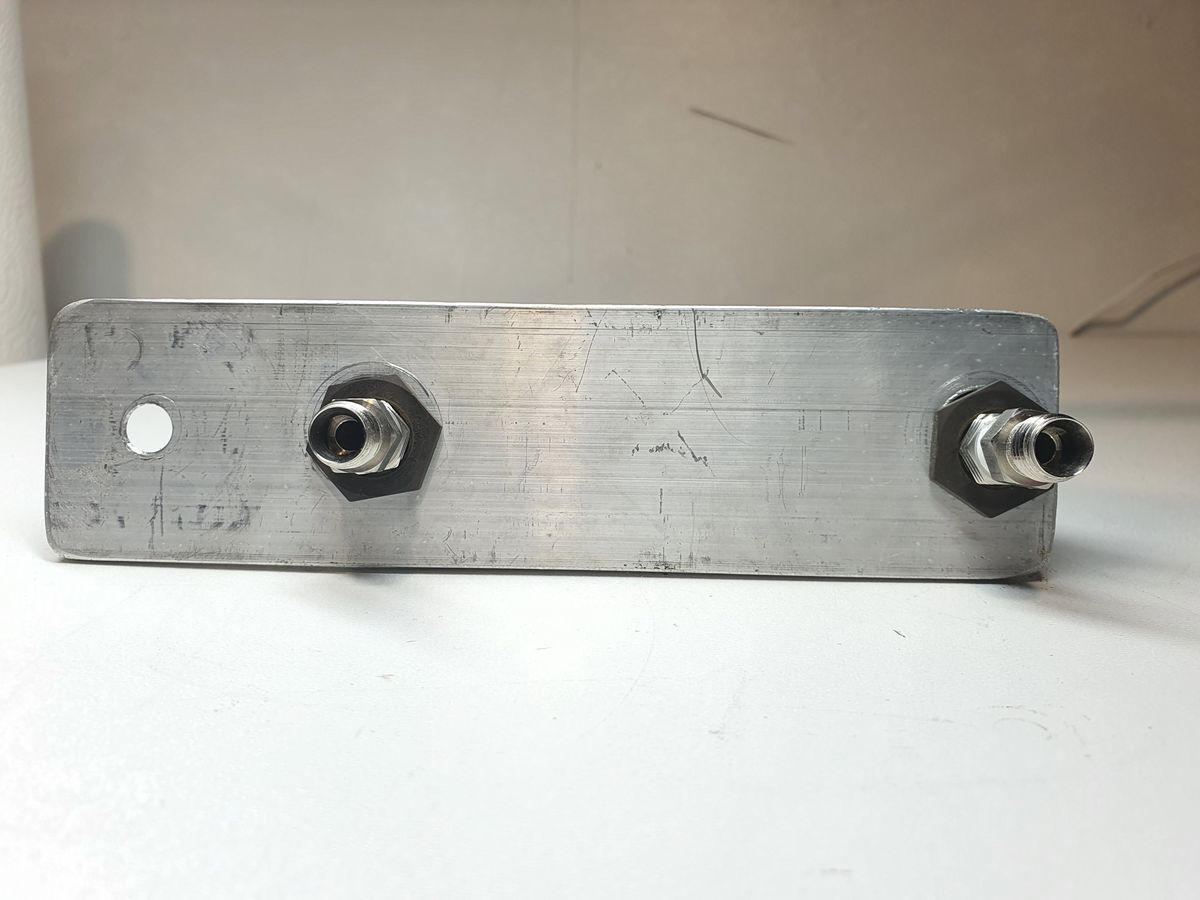

Mounting	Panel mounting

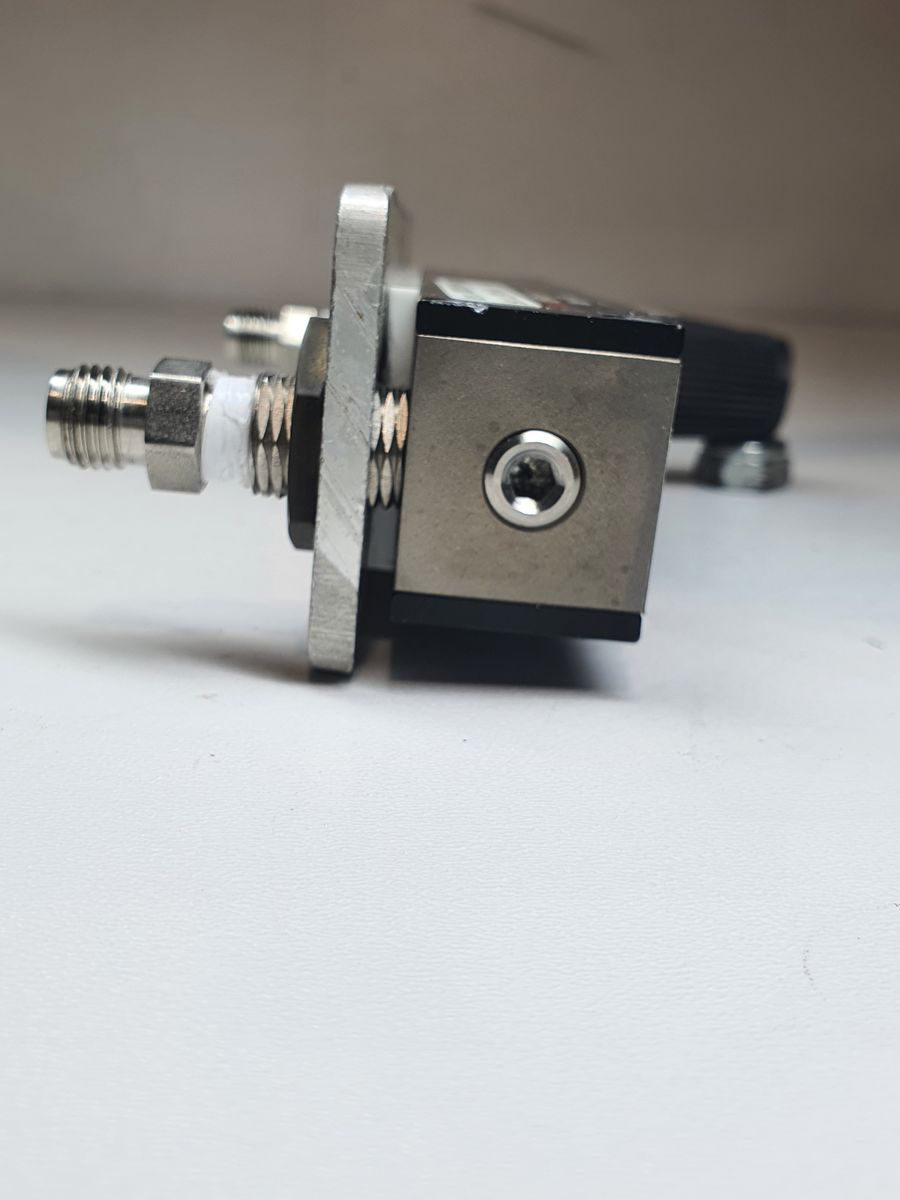

Process connections	1/8" or 1/4" NPT (model dependent)
Connection location	Rear or side
Country of manufacture	Netherlands
PED compliance	SEP (Sound Engineering Practice)
