Áramlásmérő

Brooks Instrument 1350/D2A4D1A6E020 (10-30 ln/h)

SKU: 3012

Raktáron

24/7 SZÁLLÍTÁS LEHETSÉGES

Válassza ki a feltételt

Használt
Munkakörnyezetből származik

Áfát nem tartalmazza: €55,00 (2 elérhető)

Áfával együtt: €66,55

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Garancia Információk

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított 3 hónapok

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Leírás

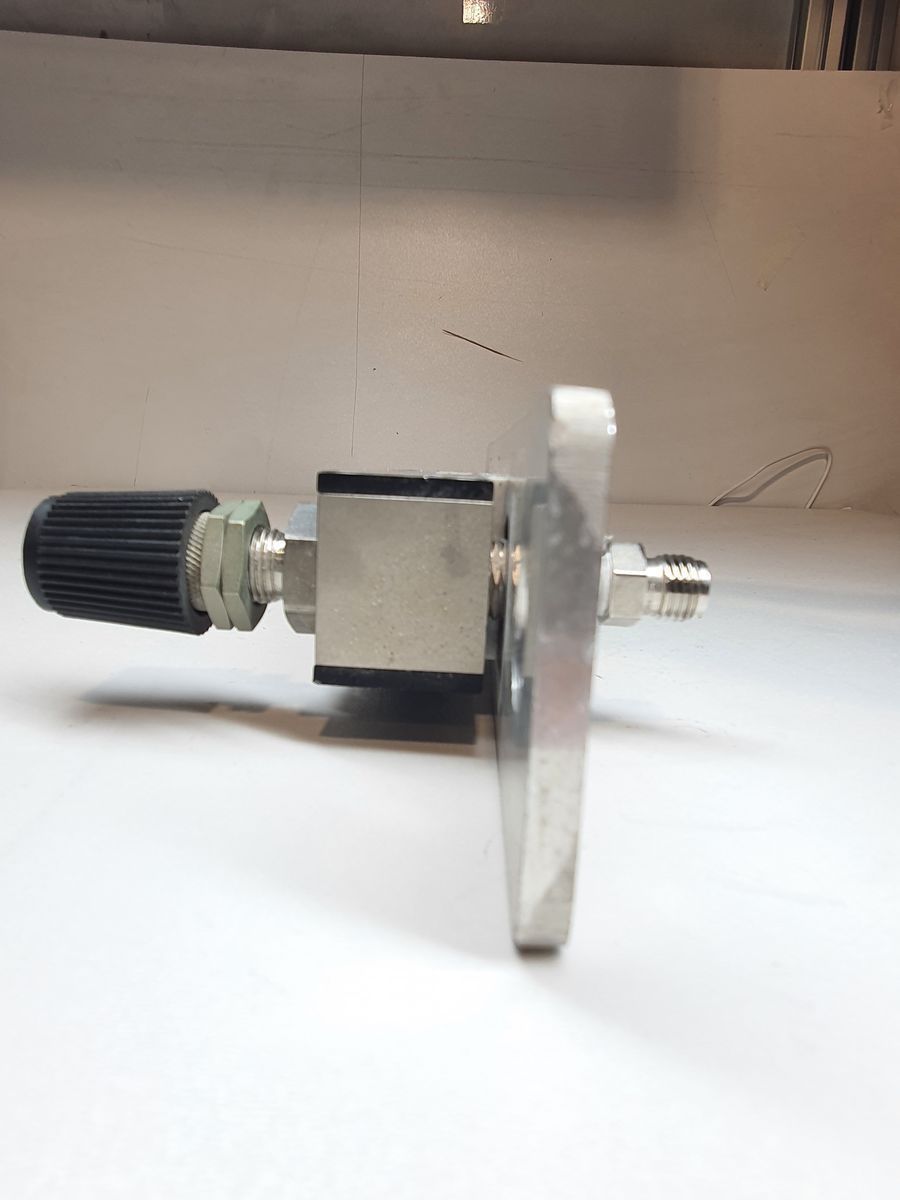

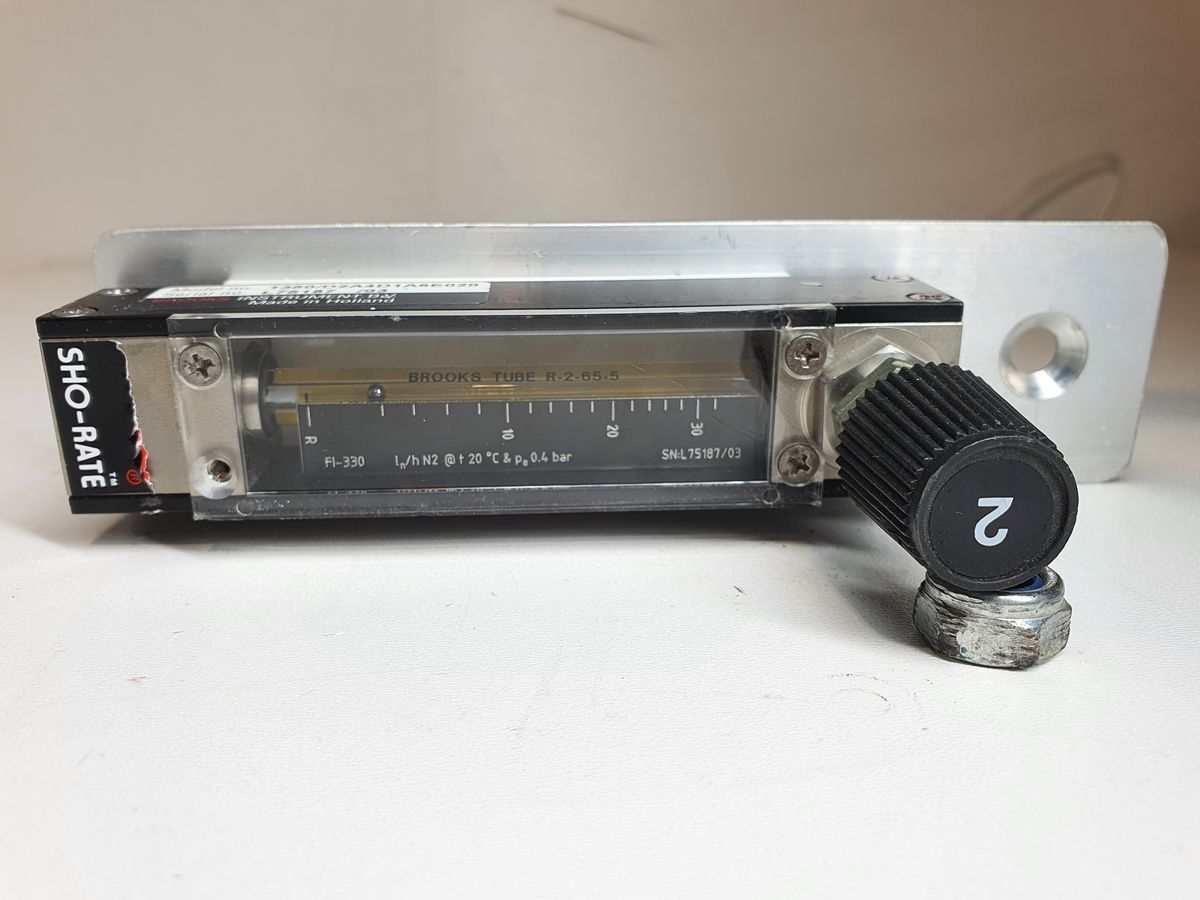

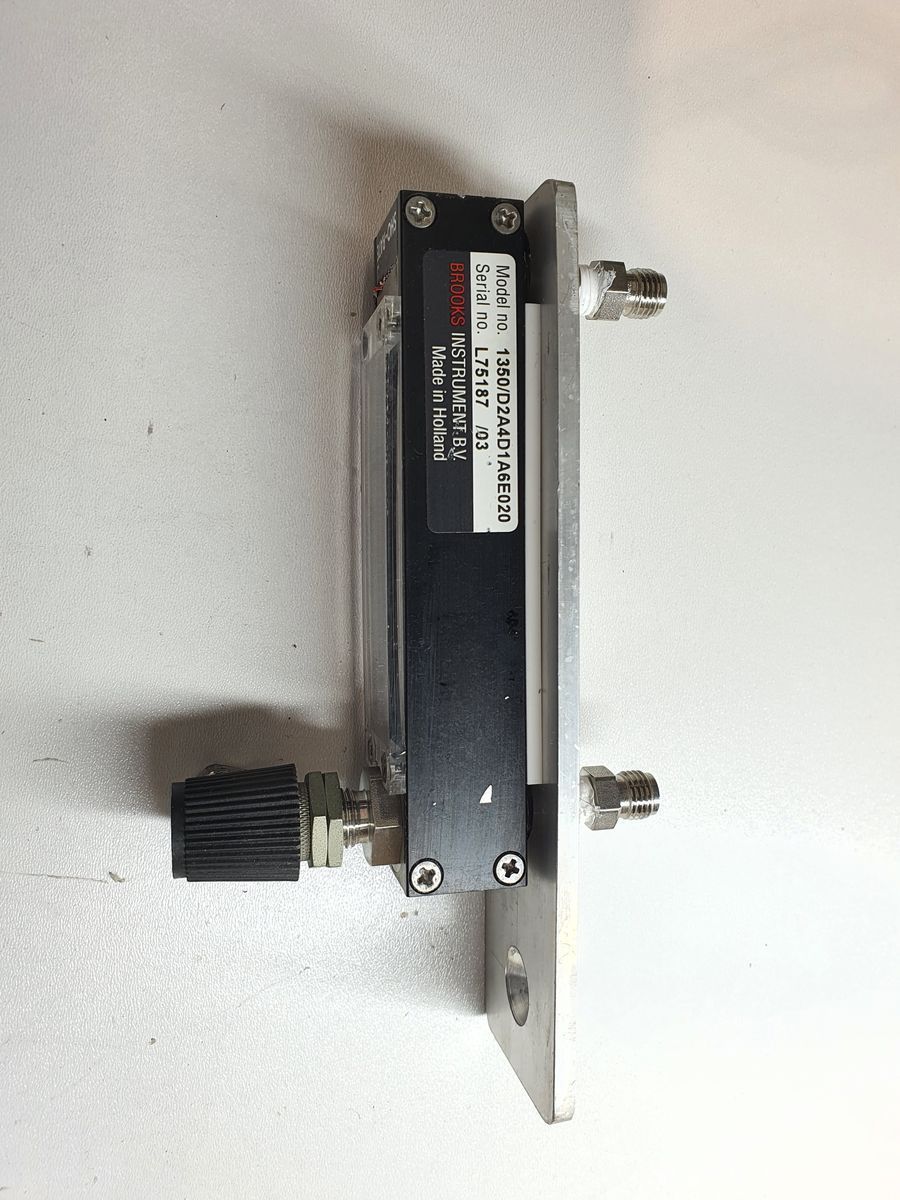

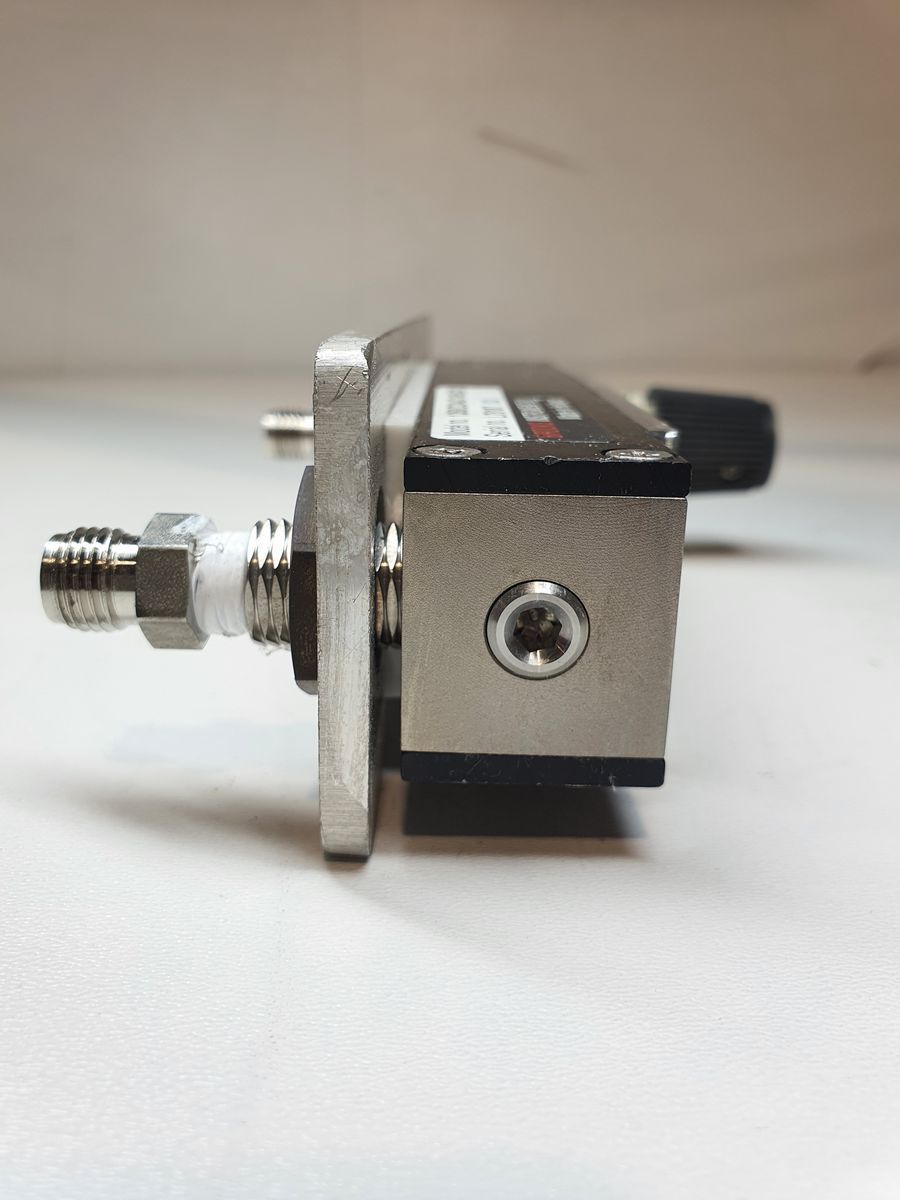

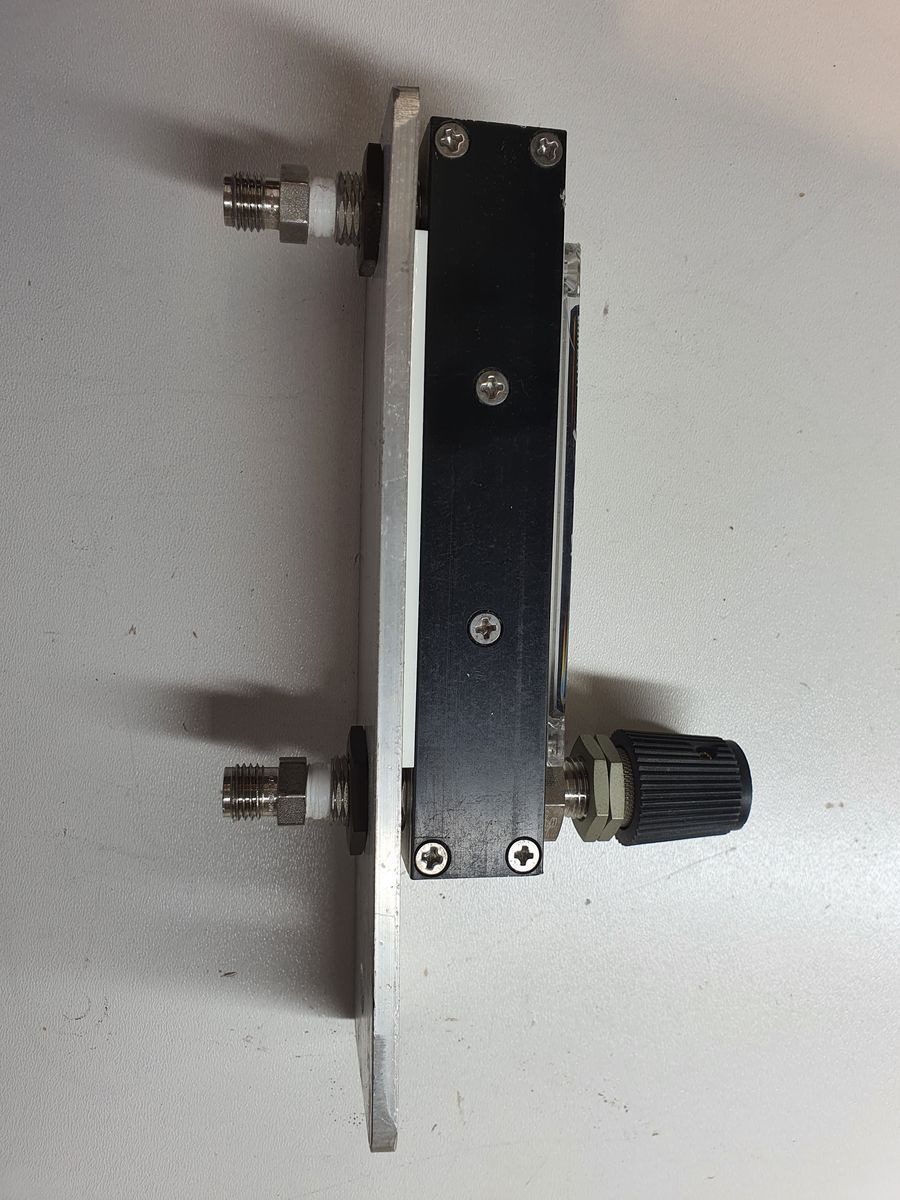

Brooks Sho-Rate™ 1350 Flowmeter

Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands

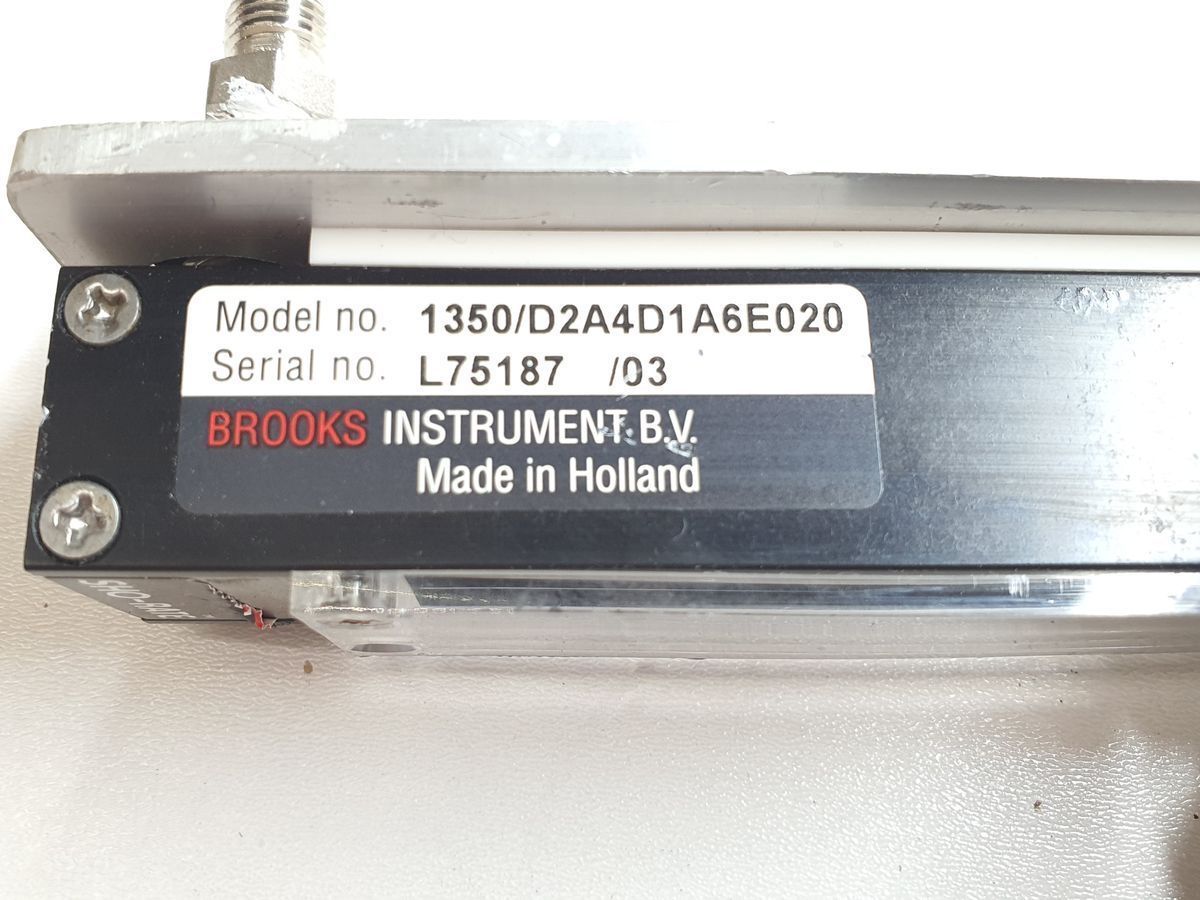

Model: 1350/D2A4D1A6E020
Serial No.: L75187
Product Type: Variable Area Flowmeter (Rotameter)

Parameter	Specification
Measurement principle	Float position (variable area)
Indication	Direct visual reading via float position
Measured medium	Nitrogen (N₂)
Flow range	10–30 Fl–330 ln/h N₂
Accuracy	Typically ±5% of full scale
Repeatability	Excellent repeatability for stable measurement
Calibration temperature	20 °C
Inlet pressure (Pe)	0.4 bar
Operating temperature	20 °C (calibration condition)
Metering tube material	Borosilicate glass
Float material	As defined by D1 configuration
Installation orientation	Vertical
Process connections	1/8" or 1/4" NPT (model-dependent)
Mounting	Panel mounting, optional rear or side connections
Country of manufacture	Netherlands
Compliance	PED SEP (Sound Engineering Practice)
